• 20’ x 11’ (23’ diagonal) – The biggest projection screen in the Open Air Event Pro Series, our 20’ foot screen features a 220 square feet projection screen and can comfortably seating an audience of well over 500 and only weigh 140 pounds.

20' Pro Screen Specification

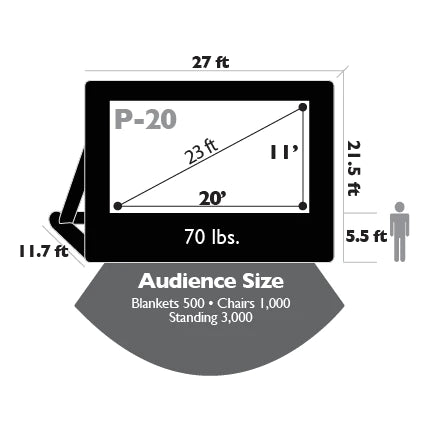

• Projection Surface Size: 20' x 11' (6.1m x 3.4m)
• Aspect Ratio: Wide - 16:9
• Audience Size: Grass: 500 / Chairs: 1,000 / Standing: 3,000
• Diagonal: 23' - 276" (7m)
• Projection Surface: front/rear, removable blackout backdrop, zip-off, washable, matte-white, wrinkle-free, self-tensioning

• Protective ground cover for screen
• Air Vents: Velcro and zipper, easy access for rapid deflation
• From ground: 5'6" (1.68m)
• Frame Dimension: 27' x 21.5' x 11' (8.23m x 6.55m x 3.35m)
• Screen and Accessories Weight: 90lbs

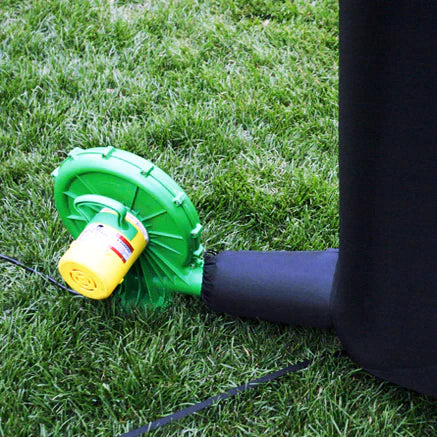

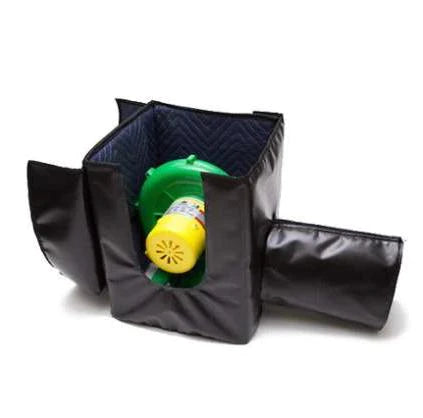

• Blower: 1 HP 110v (220v available), includes sound dampening box
• Shipping Weight: 185lbs (83.91kg)
• Inflate time: <20 seconds

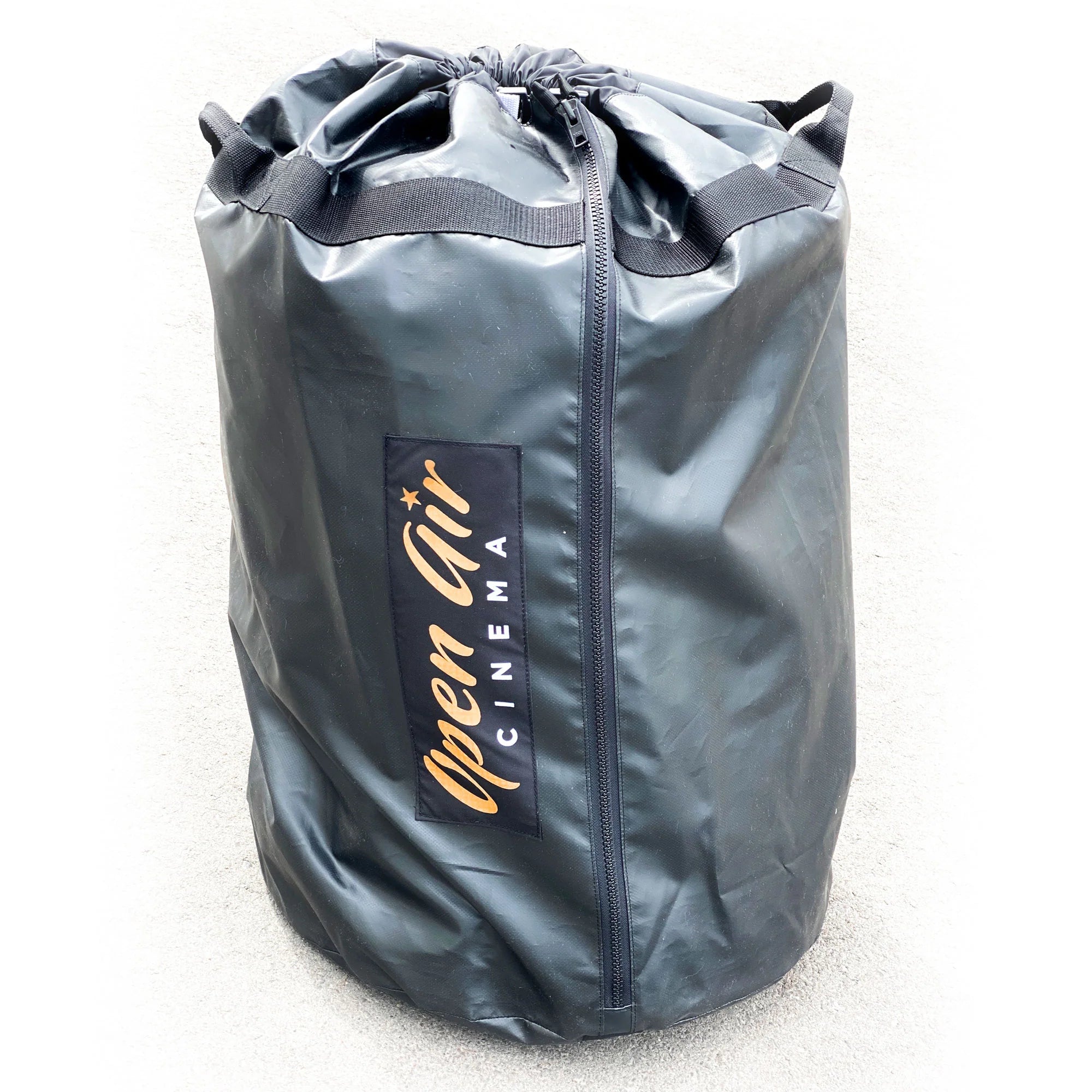

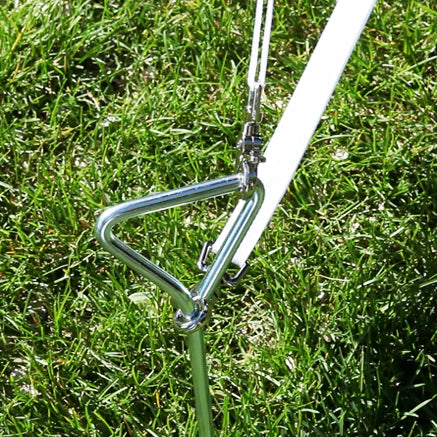

• Included Items: Durable Twist Stakes, Cinch Straps, Carrying Bag
• Crew complement: 1 person
• Wind rating: 25mph (audiences generally leave by this point)
• Warranty: 2 Year

Brand and models of equipment are subject to change due to availability. Any changes will be comparable to item shown

CineBox™ Pro Brochure

CineBox™ Pro System User Guide

• Damaged and missing item shipments must be reported to OAC Customer Service within five days from receipt of shipment. OAC will initiate all freight claims with the carrier.
• Any compromise to the package must be noted on the delivery receipt and/or Bill of Lading as proof the damage or tampering occurred prior to delivery. Failure to do so may result in the freight damage claim being denied.
• To ensure damage/claim credit, all damaged product, original packaging and outer shipping box must be returned to OAC. For assistance, please contact OAC Customer Service at 866 347-9391.

• Product in new/re-sellable condition may be returned within 7 days from the date of in-store purchase or delivery to customer (if ordered online) at OAC's discretion. All returns must be in new condition, including the original box, packaging, manuals and accessories. A 20% restocking fee applies on all returns. All returns must be approved by Open Air Cinema to verify new condition before any refund will be issued. For returns and exchanges, customer is responsible for shipping to and from Open Air Cinema.
• A Return Merchandise Authorization (RMA) number must be obtained prior to the return of any merchandise. Please contact OAC Customer Service at 866 347-9391 to obtain return authorization. Product returned without an RMA number will be returned to the customer at customer's expense.
• RMA numbers are valid for 30 days.
• Returns will be credited at the price paid on invoice less any re-stock fee.
• Sale of closeout and special ordered items are final. Only defective closeout/ special ordered product may be returned for credit as per normal OAC policy.
• Items showing signs of misuse or consumer abuse will not be accepted for return. Custom installation products that have been painted or altered are not eligible for return.
• Items designed for consumer use but used commercially are not eligible for return.
• All returns must be shipped at the customer's expense and double boxed with the RMA number displayed on the outside of the shipping box along with the number of boxes being shipped back (i.e. 1 of 6, 2 of 6).
• A refund check will be issued within 10 business days upon receipt of merchandise if a refund is approved.

• A Return Merchandise Authorization (RMA) number must be obtained prior to the return of any merchandise. Please contact OAC Customer Service at 866 347-9391 to obtain return authorization. Product returned without an RMA number will be returned to the customer at customer's expense.
• RMA numbers are valid for 30 days.
• Once an RMA is issued, OAC’s shipping department will issue shipping labels for the product to be returned at OAC’s expense.
• If upon review of the defective product by an OAC technician, it is determined that the product was damaged due to customer negligence, the warranty will be void. The customer would then be responsible for reimbursing OAC the return shipping amount and will be responsible for further shipping arrangements.

Warranty covers manufacturer's defects and warranties the screen for use in up to 20 mph winds when used properly. Proper use includes tying all ropes or tethers to properly secured stakes or weight appropriate anchoring at the proper
distances and angles from the screen. See instruction manual for proper screen anchoring.

Open Air Cinema is not responsible for damage arising from failure to follow instructions relating to the product’s use. Warranty does not cover damage to screen caused by winds over 20 mph, use of screen in close proximity to trees, buildings, poles, wires, cars, and other potentially damaging objects. Further, warranty does not cover damage from mold, mildew, moisture, improper folding and storage, dragging the screen along hard surfaces or acts of God.

1 Year warranty applies to screen, tethers, clips, stakes and storage bag.
After 90 days all B-Air or XPower blower warranty issues must be handled directly with B-Air or XPower

Contact B-Air directly at 877-800-2247 for all warranty issues. In order to receive service or replacement parts under warranty from B-Air, you must:
1. Call B-Air for a RMA# (return merchandise authorization number)
2. Have proof of purchase
3. Ship to:
                 INTERTEX, INC / B-AIR BLOWERS
                 1851 Tyburn St.
                 Glendale, CA 91204
